стеклотара от украинского производителя  main page  mixer-dissolver ВС-3

«Mixer-dissolver of the mechanical mixing BC-3» is designed for making of high- and middle-filled paints, fillings, sealant, dispersion and mixture of pigments, dyes and other materials of the middle hardness in the liquid mediums (varnish, drying oil, water, etc.). The mixer can be used in varnish-and-paint, polygraphic and other industry branches.

Rotation frequency of the high-speed cogged mixer, 1400 rotations per minute

Rotation frequency of the high-speed framed mixer, 22,4 rotations per minute

Working facilities:
       portable vessel capacity, m3 — 0,45
       material property — corrosion-resisting
       Vacuum medium, discharging, kilogram-force/cm2 — 0,3±0,7

Total regulation power, kilowatt — 34

Productivity is 6-8 tons per one shift

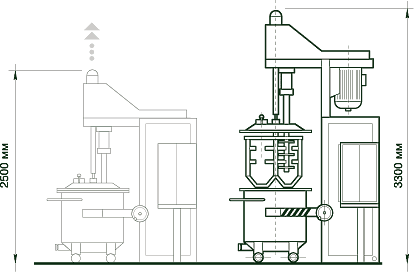

Overall dimensions:
       length — 1950 mm
       width — 1200 mm
       height — 2500 mm
       height with the frame lifted — 3300 m
       weight is not more than — 1300 kg

Supply complete set:
       Mixer ready-assembled — 1
       Portable vessel (bowl) — 1
       Power panel — 1

Technical documents:
       Mixer operating manual — 1
       Hydrostation certificate — 1
        Reduction gear certificate — 1
       ZIP — 1
